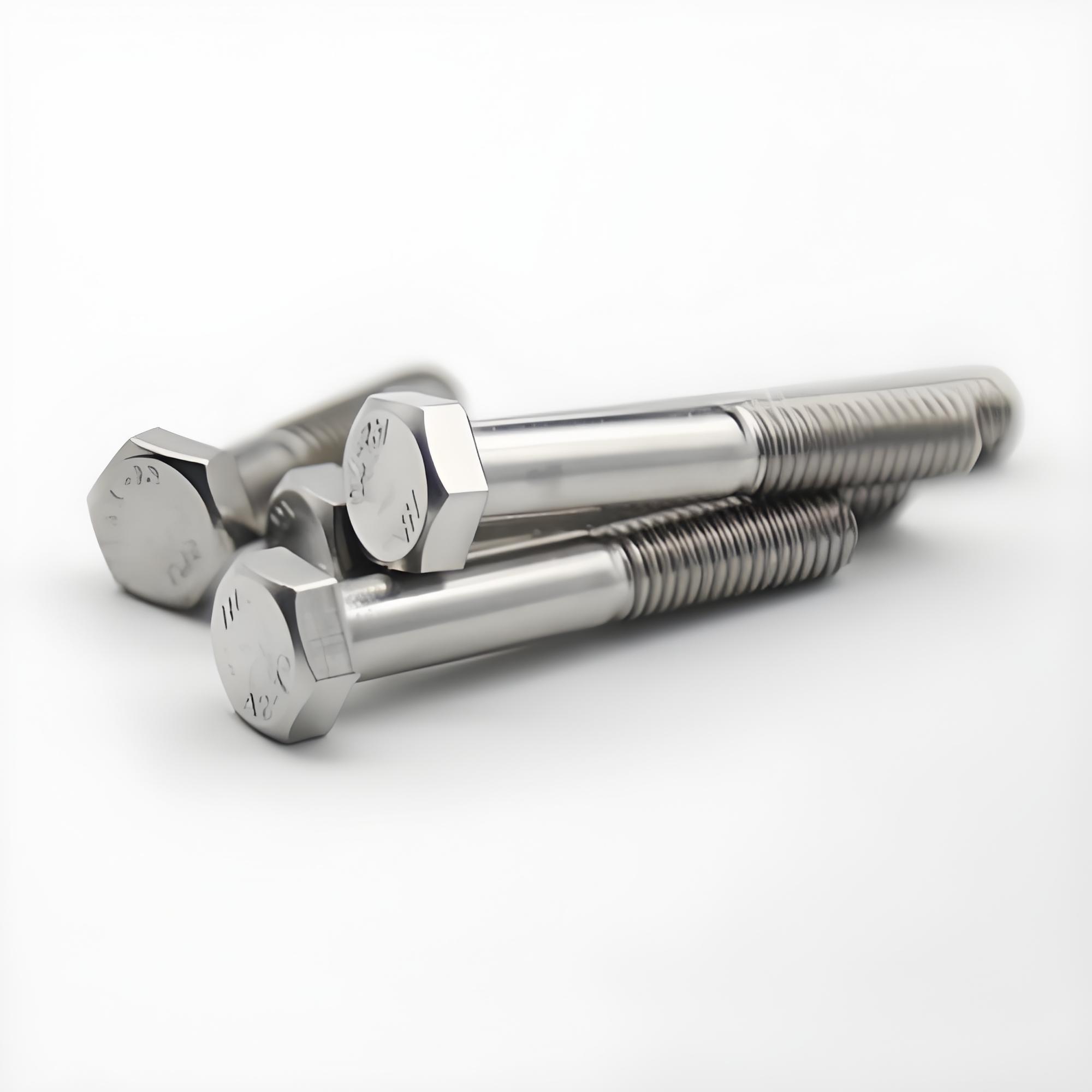

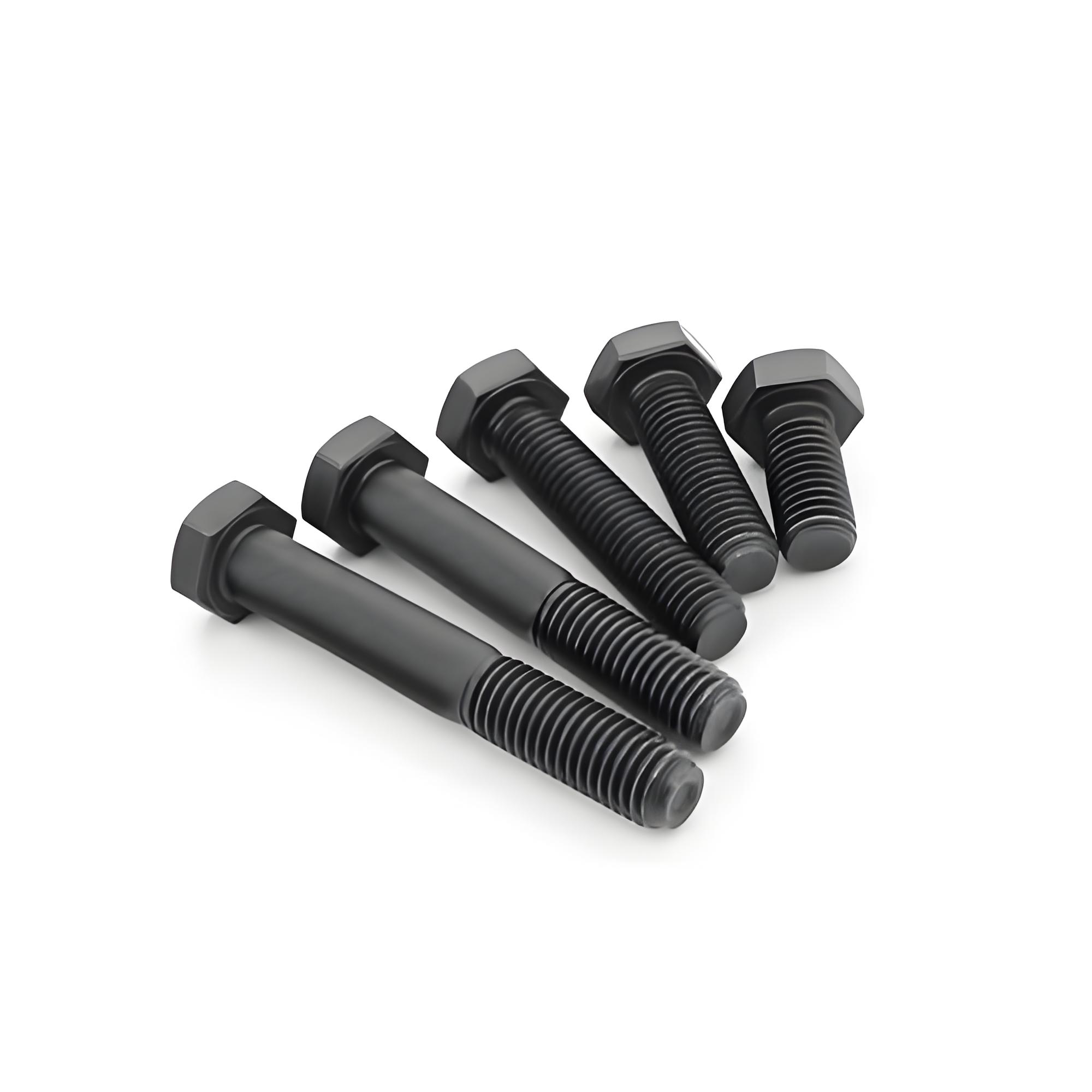

DIN931 is a commonly seen German-standard hexagon head bolt. Its head is a regular hexagon, which makes it convenient to use tools like wrenches for tightening and loosening operations. The screw rod part is usually fully threaded or partially threaded, and it can be used in conjunction with a nut to achieve the fastening connection between parts. It has a variety of specifications. Bolts of different specifications vary in dimensional parameters such as diameter, length, and thread pitch, and can meet different mechanical strength and usage environment requirements. It is widely applied in many fields, including machinery manufacturing, the automotive industry, construction engineering, and so on.
Standard:Â DIN931
Nominal diameter: 6Â 8Â 10Â 12Â 14Â 16Â 18Â 20Â 22Â 24Â 27Â 30Â 33Â 36Â 39Â 42Â 45Â 48https://pangjinfasteners.com/about-us.html
Length:Â 30Â 35Â 40Â 45Â 50Â 55Â 60Â 65Â 70Â 75Â 80Â 85Â 90Â 95Â 100Â 105Â 110Â 115Â 120Â 125Â 130Â 135Â 140Â 145Â 150Â 155Â 160Â 165Â 170Â 175Â 180Â 185Â 190Â Â 200Â 210Â 220Â 225Â 230Â 240Â 250Â 260Â 270Â 280Â 290Â 300Â 310Â 320Â Â 330Â 340Â 350
Material: 304Â 316
The classification of DIN931 bolts according to performance levels is as follows:
– Grade 4.8: The “4” indicates that the nominal tensile strength is 400MPa, and the “8” indicates that the yield ratio (the ratio of yield strength to tensile strength) is 0.8. Its yield strength is approximately 320MPa. It is suitable for general fastening applications, such as the connection of ordinary mechanical parts and furniture assembly.
– Grade 8.8: The nominal tensile strength is 800MPa, the yield ratio is 0.8, and the yield strength is approximately 640MPa. It has relatively high strength and toughness and is often used in the automotive manufacturing, mechanical equipment and other applications where higher fastening strength is required.
– Grade 10.9: The nominal tensile strength is 1000MPa, the yield ratio is 0.9, and the yield strength is approximately 900MPa. It belongs to high-strength bolts and is mainly used for the connection of important structures that bear large loads and impacts, such as bridge engineering and heavy machinery.
– Grade 12.9: The nominal tensile strength is 1200MPa, the yield ratio is 0.9, and the yield strength is approximately 1080MPa. It is the type with the highest strength and is usually used in the aerospace, military equipment, and industrial fields with extremely high requirements for bolt strength.
The above are the common performance grade classifications of DIN931 bolts. Bolts of different grades vary in materials, heat treatment processes, etc., to meet different usage requirements.
1. About package
1.1 In our daily production operations, we always maintain a rigorous and scientific attitude towards the product packaging process. When it comes to selecting materials for the inner packaging of products, we typically use plastic films, plastic bags, or plastic trays. Thanks to their excellent sealing properties and corrosion resistance, these materials can effectively protect products and perform the functions of moisture prevention and rust prevention remarkably well. Especially for those fastener products with high manufacturing precision or those that are relatively fragile and vulnerable, we will additionally use cushioning materials with excellent shock absorption performance, such as foam plastics and sponges, to further enhance the protection. In this way, we can avoid product damage caused by various collisions and jolts during transportation, ensuring the integrity and quality of products to the greatest extent. Regarding the outer packaging, we usually choose corrugated cardboard boxes, wooden cases, or plywood cases. Corrugated cardboard boxes are lightweight and cost-effective, making them suitable for fasteners with relatively light weights. Wooden cases and plywood cases have high strength, which not only allows them to bear heavier loads but also enables them to meet the fumigation requirements for export packaging, making them ideal for heavy-duty or vulnerable fasteners.
1.2 In addition, we attach great importance to the personalized needs of each customer and are committed to providing customized packaging services. If customers have unique design requirements for the color, pattern, and size of the packaging, or if they expect to print exclusive brand logos on the packaging to enhance their brand image, we will go all out, mobilize various resources of the company, and make every effort to meet each special requirement of the customers. We strive to create unique packaging solutions for customers that are in line with their brand concepts and market positioning.
2.About payment
Our company uniformly adopts T/T (Telegraphic Transfer) as the payment method. For regular orders, a 30% advance payment is required at the time of placing the order to initiate the order process. The remaining 70% balance must be fully settled before the goods are loaded onto the vehicle to ensure a seamless connection between the payment transfer and the goods transportation process.
In the case of customized products, considering the particularity of their production, the advance payment proportion is adjusted to 30% - 50%, which needs to be paid upon finalizing the customized details and signing the contract. The remaining balance is also required to be paid off before the goods are loaded. Only when the balance is cleared can the goods be guaranteed to be delivered to your designated location on time and smoothly, avoiding any possible delays or disputes.
3.About Delivery & shipment
For in-stock products, with the support of our efficient logistics distribution system and internal coordination mechanism, we promise to complete the delivery within 10 days, enabling you to obtain the desired goods promptly. As for customized products, since they need to be produced according to specific specifications and requirements, involving multiple processes such as design confirmation, raw material procurement, and production, we will generally complete the delivery within one month, ensuring that you can receive the customized products that meet your needs as scheduled.
